3 Axle 50 Tons Dump Trailer

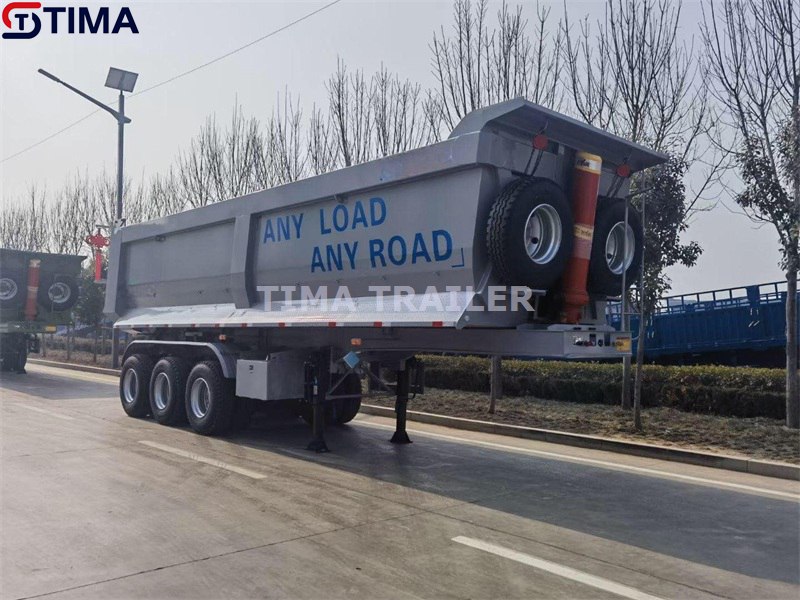

3 Axle 50 Tons Dump Trailer Picture

The 3 axle 50 ton dump trailer is a heavy-duty trailer designed for transporting loose materials such as sand, gravel, dirt, or rocks. With a capacity of 50 tons, it can carry a large amount of material in one trip, increasing efficiency and reducing transportation costs.The trailer is equipped with a hydraulic system that allows the bed to be raised and tilted to dump the materials.

                                                 3 Axle 50 Tons Dump Trailer For Sale In Tanzania

3 Axle 50 Tons Dump Trailer Configuration

Overall Dimension: 10500x2300x3700mm(LxWxH)

Cargo Box: 9500x2300x1600mm(LxWxH)

Loading Capacity: 50 tons

Axle: FUWA brand. 3 axle, 3x16000kg

Tire: TRIANGLE brand. 315/80R22.5, 12 pcs, tubeless model.

Suspension: Mechanical suspension

Leaf Spring: TAIYUE brand. 90x16mmx10pcs

Tractor Pin: JOST brand. 3.5 inch

Main Beam: Height: 500mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 16mm.

The 3 axle 50 tons dump trailer specification only for your reference, we also can manufacture 3 axle tipper trailer basic on your request.

3 Axle 50 Tons Dump Trailer Tire Detail

The tire of 3 axle 50 tons dump trailer is 315/80R22.5, tubeless model, TRIANGLE brand. 18PR. This long-haul tire typically has a stronger carcass and deeper tread for better durability and firmness. Additionally, they typically have better drainage and better grip to handle the variety of road and weather conditions that long-haul haulage routes may encounter.
