3 Axle 70 Tons Gooseneck Detachable Lowbed Trailer

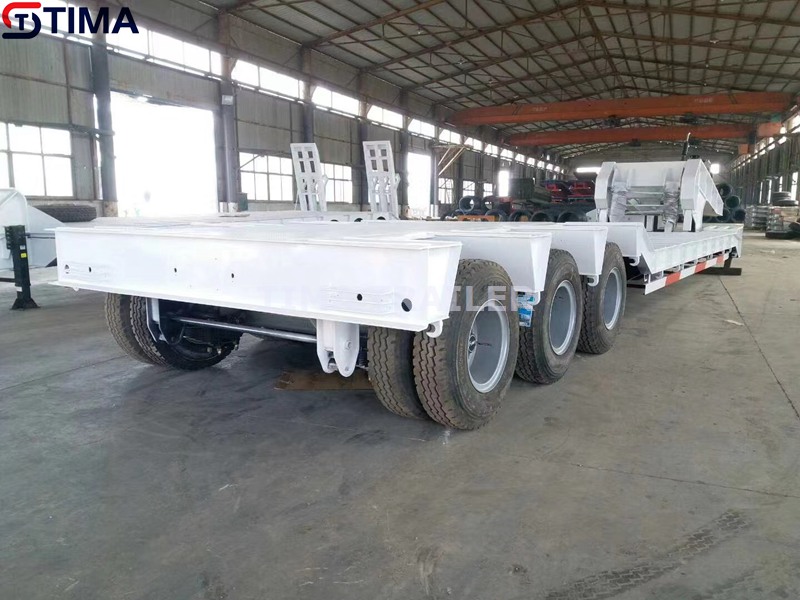

3 Axle 70 Tons Gooseneck Detachable Lowbed Trailer Picture

The low bed trailer is equipped with hydraulic suspension and axles to support heavy loads, and high-strength steel construction to ensure durability and maintain the trailer's shape. The deck is expandable, allowing for the transportation of larger equipment or machinery. The rear of the deck is designed to provide easy access to the cargo area, and loading ramps can be used to facilitate loading and unloading. Other safety features include cargo lock fixtures to secure the load, guardrails to prevent cargo from rubbing against the trailer, safety belts, and warning signs. The trailer can also be equipped with lighting and signaling systems for increased safety during nighttime and inclement weather conditions.

                                3 Axle 70 Tons Gooseneck Detachable Lowbed Trailer For Sale In Guinea

3 Axle 70 Tons Gooseneck Detachable Lowbed Trailer Configuration

Overall Dimension: 14500x3000x3300mm(LxWxH)

Loading Platform: 11000x3000x1100mm(LxWxH)

Loading Capacity: 70 tons

Axle: FUWA brand. 3 axle, 3x16000kg

Tire: TRIANGLE brand. 12.00R20, 12 pcs, radial model.

Suspension: Mechanical suspension

Leaf Spring: TAIYUE brand. 90x16mmx10pcs

Tractor Pin: JOST brand. 3.5 inch

Main Beam: Height: 500mm, Upper plate: 18mm, Middle plate: 12mm, Lower plate: 20mm.

Loading Platform Thickness: 4mm thick checkered plate

Ladder: Mechanical spring model, 850mm width, T700 high strength steel

The 3 axle 70 tons gooseneck detachable lowbed trailer specification only for your reference, we also can manufacture 3 axle lowbed trailer basic on your request.

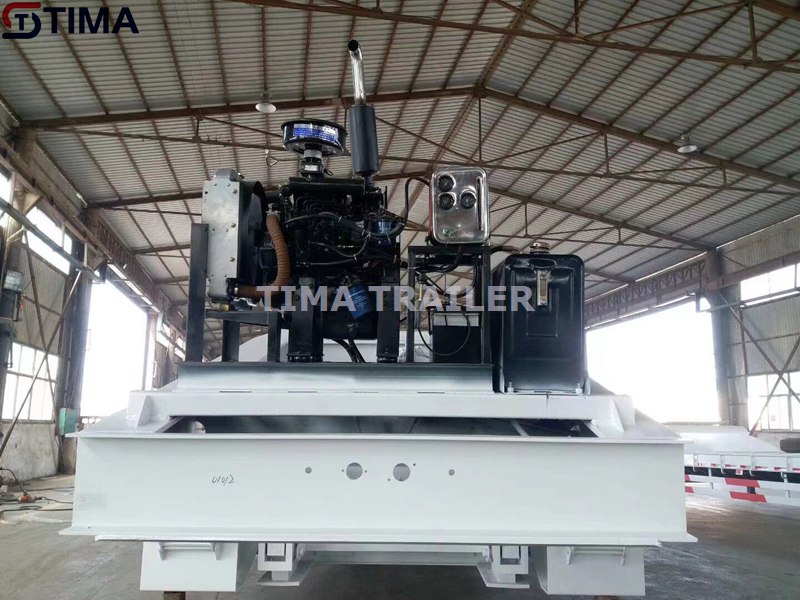

3 Axle 70 Tons Gooseneck Detachable Lowbed Trailer Power Station

The power station in the gooseneck detachable lowbed trailer has undergone 5 major system upgrades in the past decade of production. These upgrades have greatly improved the stability and reliability of the hydraulic system. With regular maintenance and timely replacement of worn-out parts, this hydraulic system can function efficiently and effectively for up to 10 years of use. The cargo will be transported safely and securely with this dependable hydraulic system.
