3 Axle 80 Tons Gooseneck Removable Low Bed Trailer

3 Axle 80 Tons Gooseneck Removable Low Bed Trailer Picture

The main feature of this kind of trailer is that it has a strong carrying capacity and is made of high-strength T700 steel, which can bear heavy cargo. The double-layer reinforced gooseneck and upper and lower wings also increase its supporting force and torsion resistance, which can better protect the safety of cargo and loading equipment. At the same time, the detachable gooseneck design also makes the loading and unloading process more convenient and efficient.This trailer is widely used.

                               3 Axle 80 Tons GooseneckRemovable Low Bed Trailer For Sale In Senegal

3 Axle 80 Tons Gooseneck Removable Low Bed Trailer Configuration

Overall Dimension: 16500x3000x2200mm(LxWxH)

Loading Platform: 12500x3000x800mm(LxWxH)

Loading Capacity: 80 tons

Axle: FUWA brand. 3 axle, 3x20000kg.

Tire: TRIANGLE brand. 315/80R22.5, tubeless model.

Suspension: Mechanical suspension

Leaf Spring: TAIYUE brand. 90x16mmx10pcs

Tractor Pin: JOST brand. 3.5 inch

Main Beam: Height: 500mm, Upper plate: 20mm, Middle plate: 14mm, Lower plate: 20mm.

Loading Platform Thickness: 5mm thick checkered plate

Ladder: Mechanical spring model, 850mm width, T700 high strength steel

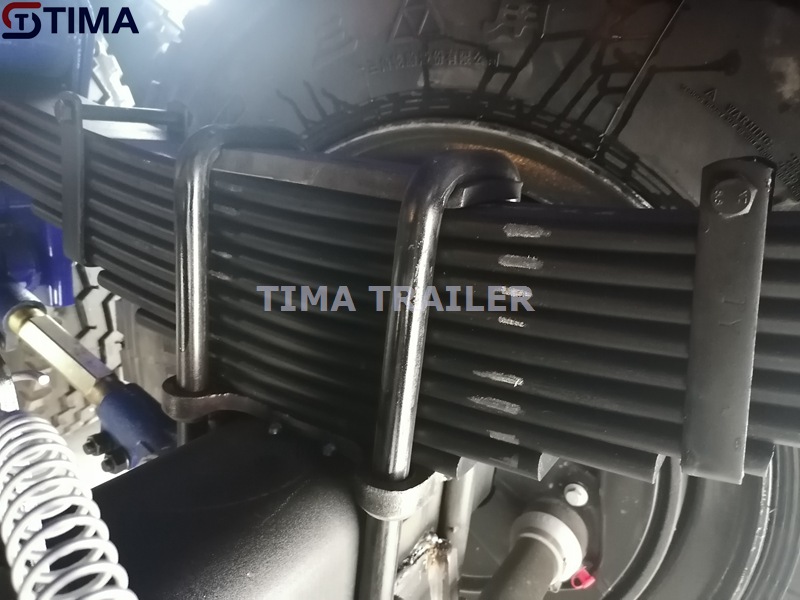

3 Axle 80 Tons Gooseneck Removable Low Bed Trailer Leaf Spring

Leaf spring is a spring structure composed of multiple steel plates, which has the characteristics of bearing capacity and shock absorption. When subjected to external impact, the leaf spring can bend and deform to absorb energy, thereby reducing the amplitude and frequency of vibration, and improving the stability and comfort of the vehicle. In addition, the leaf spring also has the advantages of fatigue resistance and corrosion resistance, and has a long service life, and is suitable for shock absorption systems of various types of heavy-duty vehicles and construction machinery.
