4 Axle 120 Tons Gooseneck Detachable Low Bed Trailer

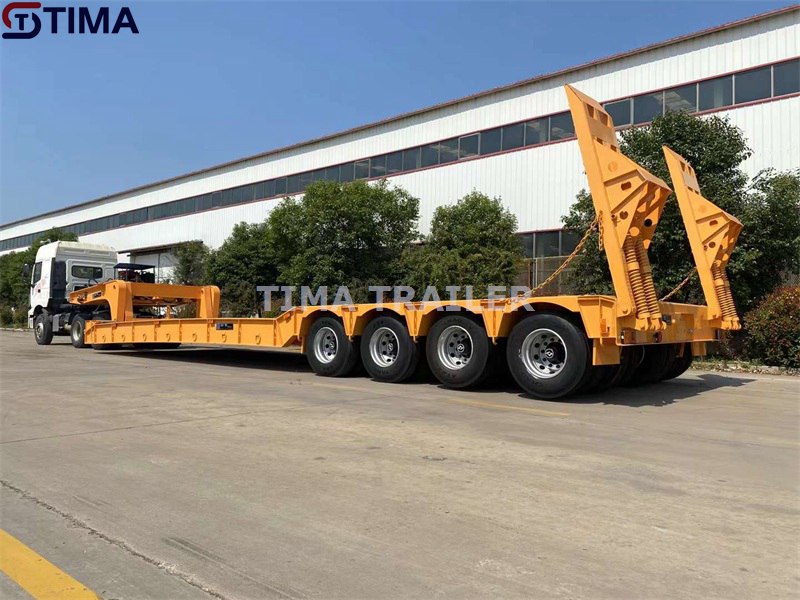

4 Axle 120 Tons Gooseneck Detachable Low Bed Trailer Picture

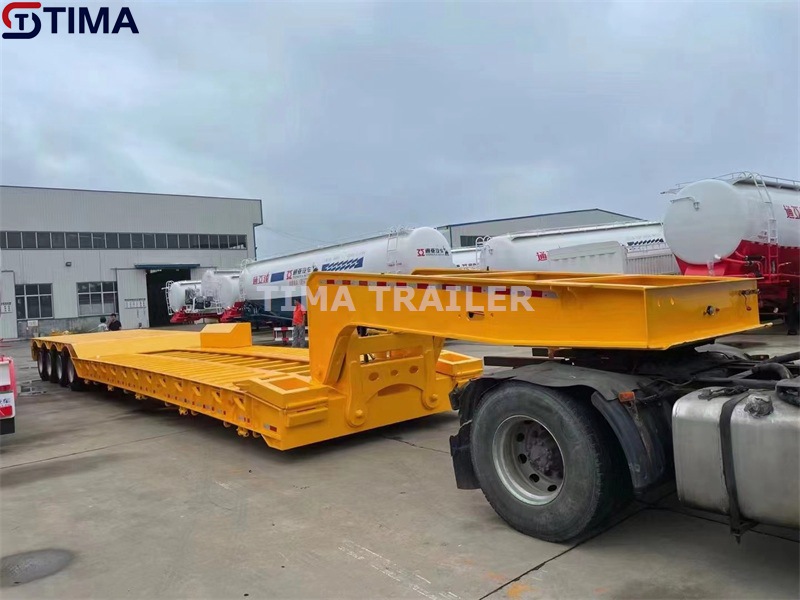

This configuration can improve loading and unloading efficiency, reduce working time and labor costs, and at the same time reduce risks and the possibility of damage to equipment during loading and unloading. This type of gooseneck-configured trailer is usually used to transport heavy machinery such as excavators, loaders, etc.

                               4 Axle 120 Tons Gooseneck Detachable Low Bed Trailer For Sale In Dr Congo

4 Axle 120 Tons Gooseneck Detachable Low Bed Trailer Configuration

Overall Dimension: 17500x3000x2200mm(LxWxH)

Loading Platform: 13500x3000x800mm(LxWxH)

Loading Capacity: 120 tons

Axle: FUWA brand. 4 axle, 4x25000kg.

Tire: TRIANGLE brand. 315/80R22.5, tubeless model.

Suspension: Mechanical suspension

Leaf Spring: TAIYUE brand. 90x16mmx10pcs

Tractor Pin: JOST brand. 3.5inch

Main Beam: Height: 500mm, Upper plate: 24mm, Middle plate: 16mm, Lower plate: 24mm.

Loading Platform Thickness: 5mm thick checkered plate

Ladder: Mechanical spring model, 850mm width, T700 high strength steel

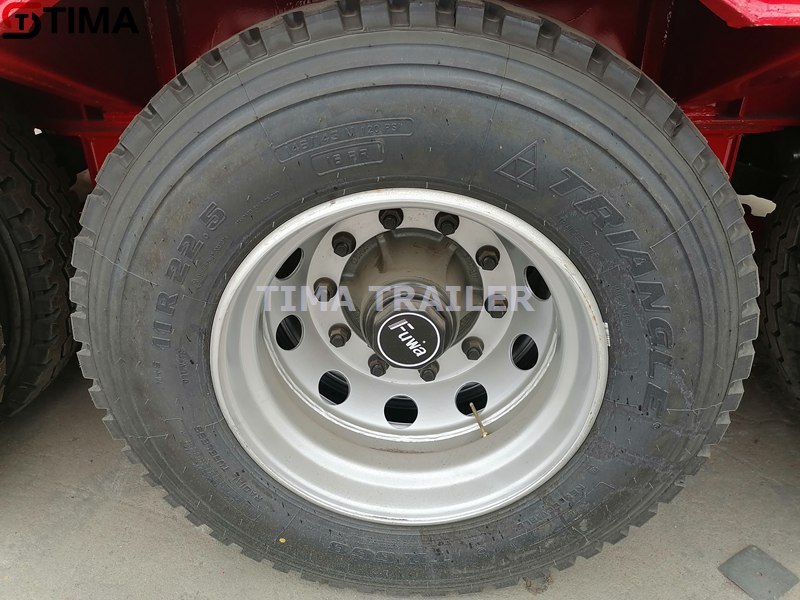

4 Axle 120 Tons Gooseneck Detachable Low Bed Trailer Wheel Rim

Consider the gooseneck detachable low bed trailer loading capacity is over 120 tons, the wheel rim need use the enhanced model. Thickness is 20mm, and material of wheel rim is manganese steel. The durable brand of wheel rim such as ZHENGXING, FEIYA etc.
