3 Axle 60 Tons Lowboy Trailer

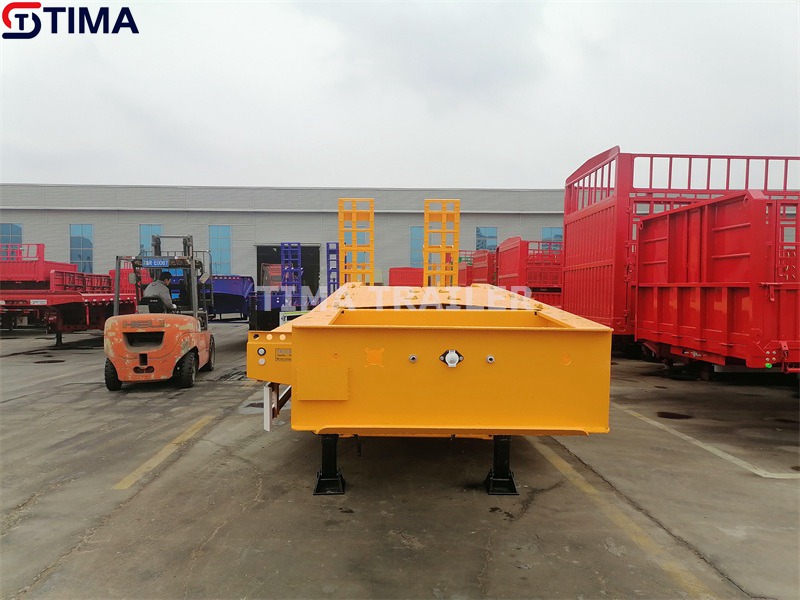

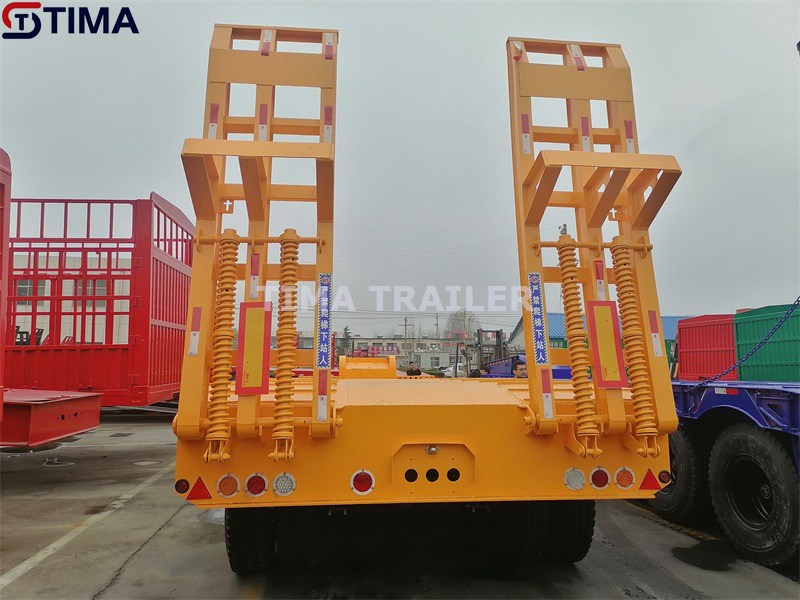

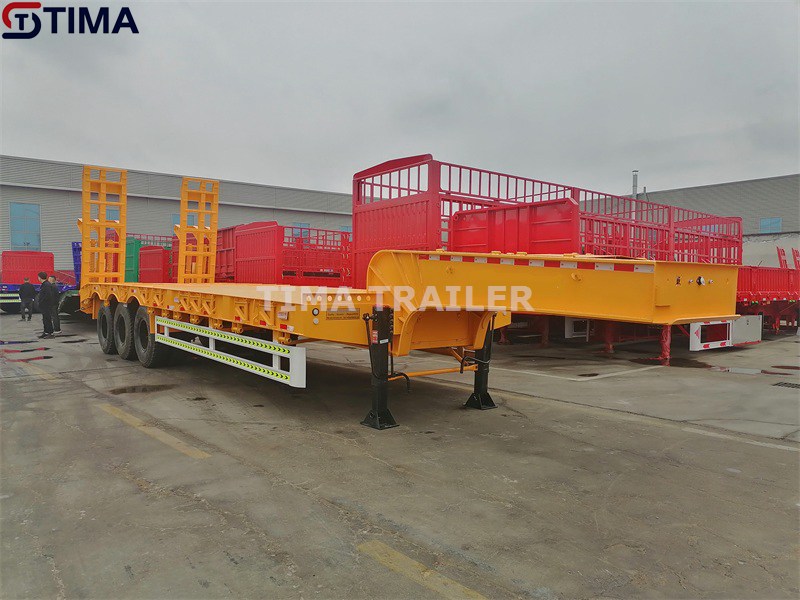

3 Axle 60 Tons Lowboy Trailer Picture

3 axle 60 tons lowboy trailer main beam adopt the automatic submerged welding tech, the uniform weld seam, less prone to cracking. There are also other model lowboy trailer, such as 40 tons, 70 tons, 100 tons lowboy trailer etc. Here is our lowboy trailer picture for your reference:

3 Axle 60 Tons Lowboy Trailer Configuration

Overall Dimension: 13300x3000x3200mm(LxWxH)

Loading Platform: 10000x3000x1230mm(LxWxH)

Loading Capacity: 60 tons

Axle: FUWA, ZY or BPW brand. 3 axle, 3x16000kg.

Tire: TRIANGLE brand. 315/80R22.5, tubeless model.

Suspension: Mechanical suspension

Leaf Spring: TAIYUE brand. 90x16mmx10pcs

Tractor Pin: JOST brand. 3.5inch

Support Leg: JOST and YAHUA brand. 28 tons

Main Beam: Height: 500mm, Upper plate: 16mm, Middle plate: 12mm, Lower plate: 18mm.

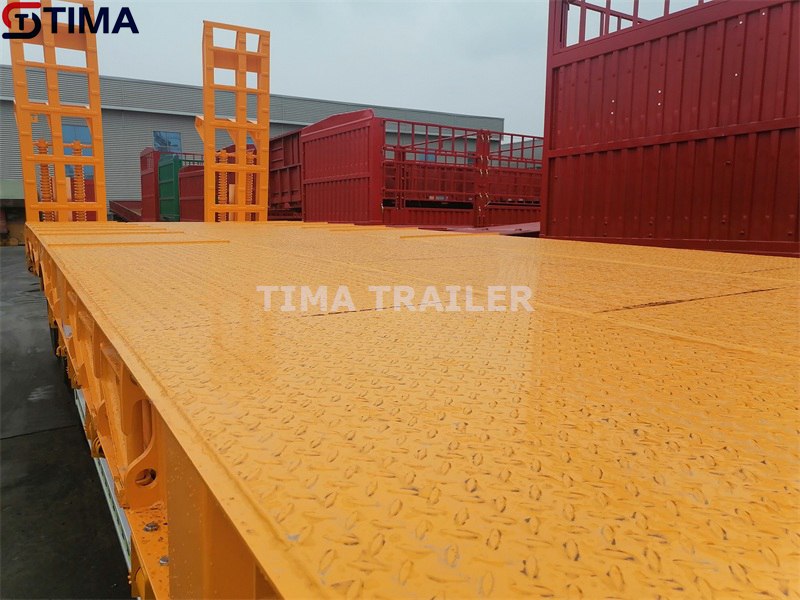

Loading Platform Thickness: 4mm thick checkered plate

Ladder: Mechanical spring model, 850mm width, T700 high strength steel

Brake System: WABCO brand brake valve and big brake chamber

Painting: Electrostatic powder spraying and baking

3 Axle 60 Tons Lowboy Trailer Axle Detail

The 3 axle 60 tons lowboy trailer axle brand can optional the FUWA, ZY and BPW, these brand axle with durable quality and supply 1 year warranty. Per axle loading tons have 13, 14, 16 and 20 tons, for heavy duty loading. These brand axle have installed on our lowboy trailer already and practice has proved no problems, are recognized by customers.
