4 Axle 100 Tons Low Bed Trailer

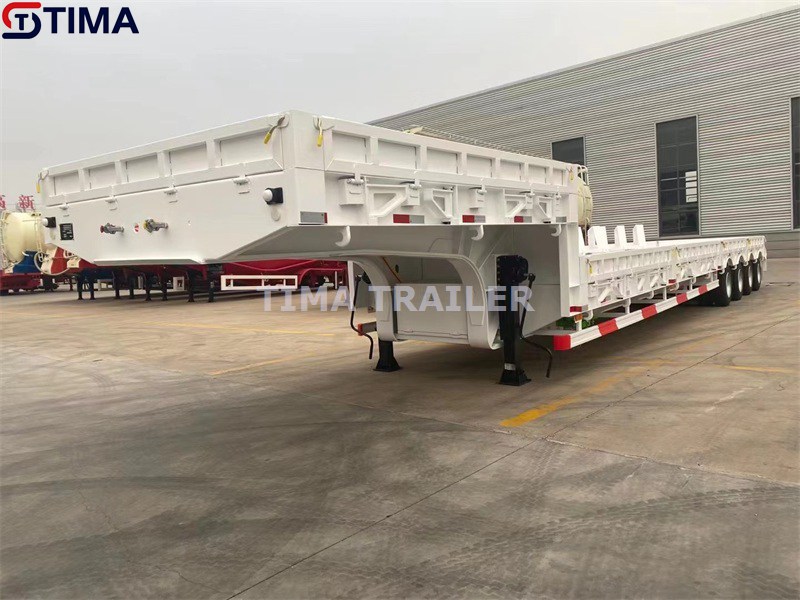

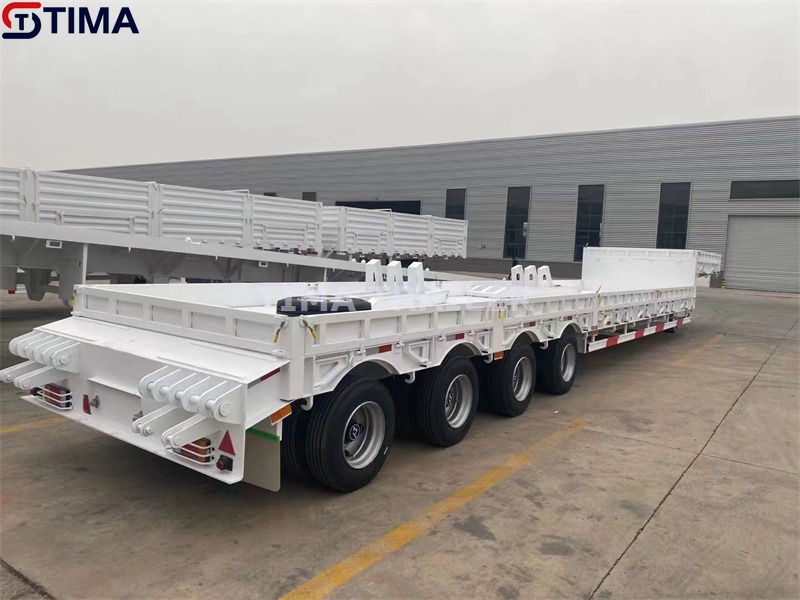

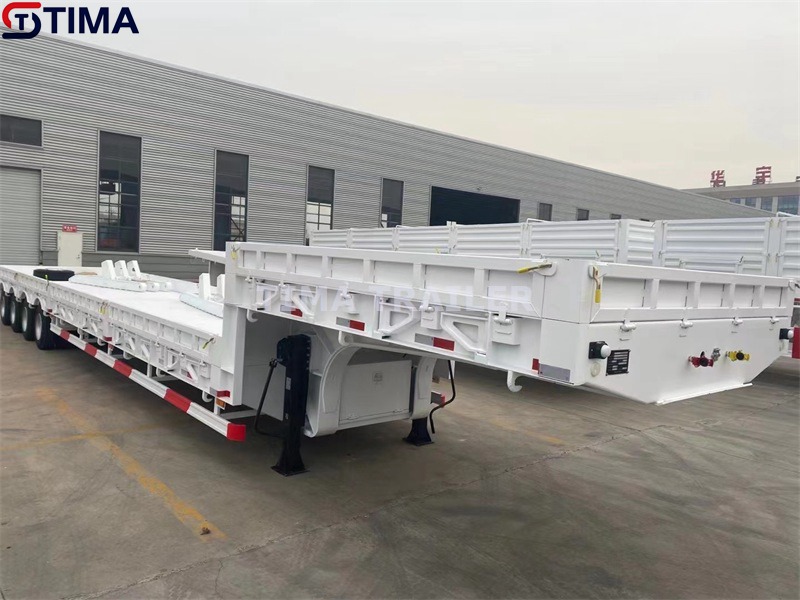

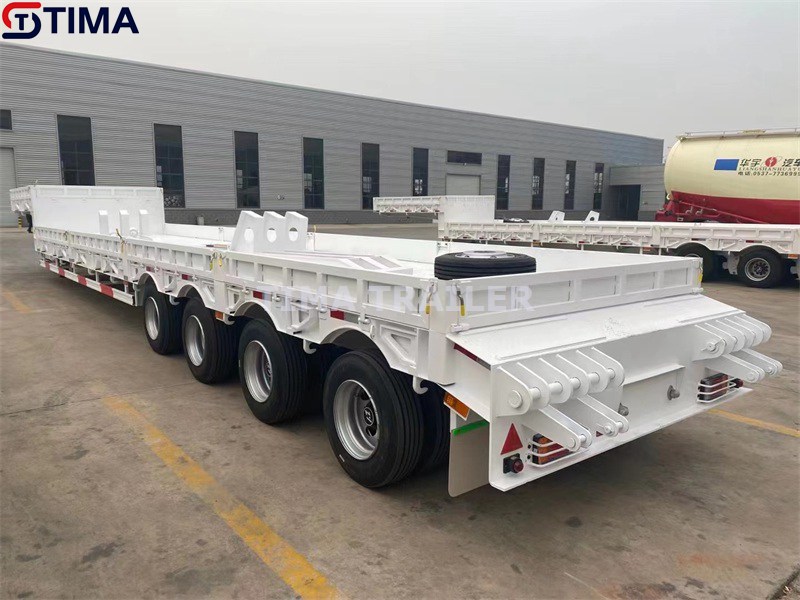

4 Axle 100 Tons Low Bed Trailer Picture

The 4 axle 100 tons low bed trailer is design for loading 100 tons cargoes, the main beam use the high strength steel, to meet the loading capacity. And ladder of low bed trailer is mechanical spring, can optional the hydraulic model, save the working time.

4 Axle 100 Tons Low Bed Trailer Configuration

Overall Dimension: 13500x3000x2800mm(LxWxH)

Loading Platform: 10200x3000x1100mm(LxWxH)

Loading Capacity: 100 tons

Axle: FUWA, ZY or BPW brand. 4 axle, 4x16000kg.

Tire: TRIANGLE brand. 315/80R22.5, tubeless model.

Suspension: Mechanical suspension

Leaf Spring: TAIYUE brand. 90x16mmx10pcs

Tractor Pin: JOST brand. 3.5inch

Support Leg: JOST and YAHUA brand. 28 tons

Main Beam: Height: 500mm, Upper plate: 22mm, Middle plate: 12mm, Lower plate: 22mm.

Loading Platform Thickness: 5mm thick checkered plate

Ladder: Mechanical spring model, 850mm width, T700 high strength steel

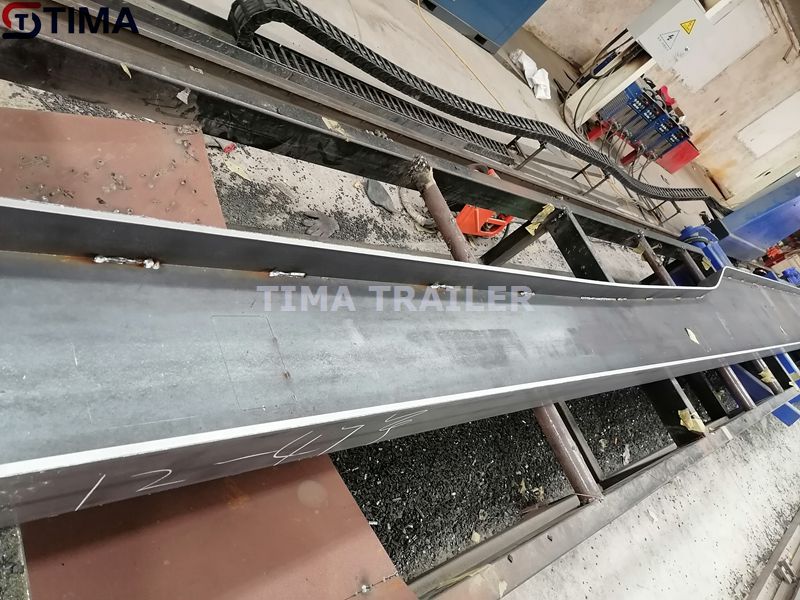

4 Axle 100 Tons Low Bed Trailer Main Beam

The main beam of 4 axle 80 tons low bed trailer like human spine, carrying and supporting role, it’s a very important spare parts. The main beam production tech is adopt the automatic submerged welding tech, the advantages of automatic submerged welding tech is high quality of weld seam, good protection of slag from air, welding parameters can be kept stable by automatic adjustment. It is a very advanced and reliable process.
