3 Axle 70 Tons Lowbed Trailer

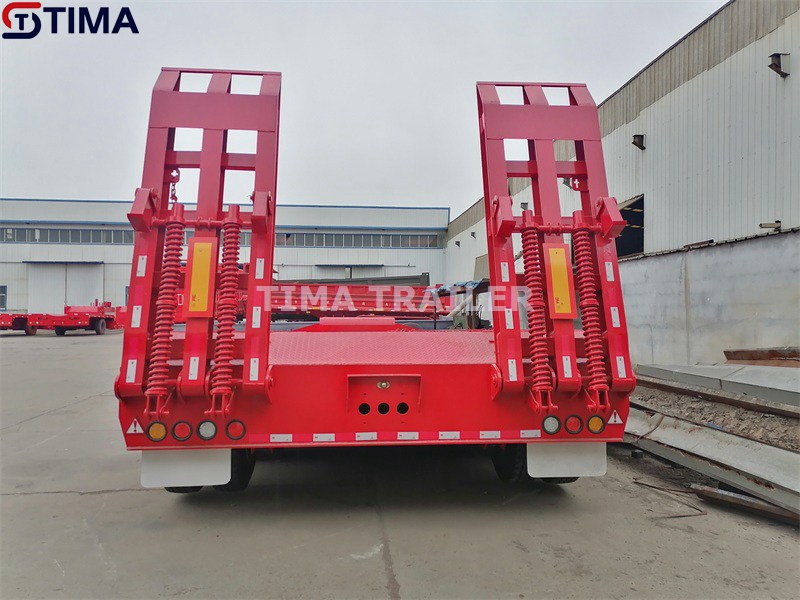

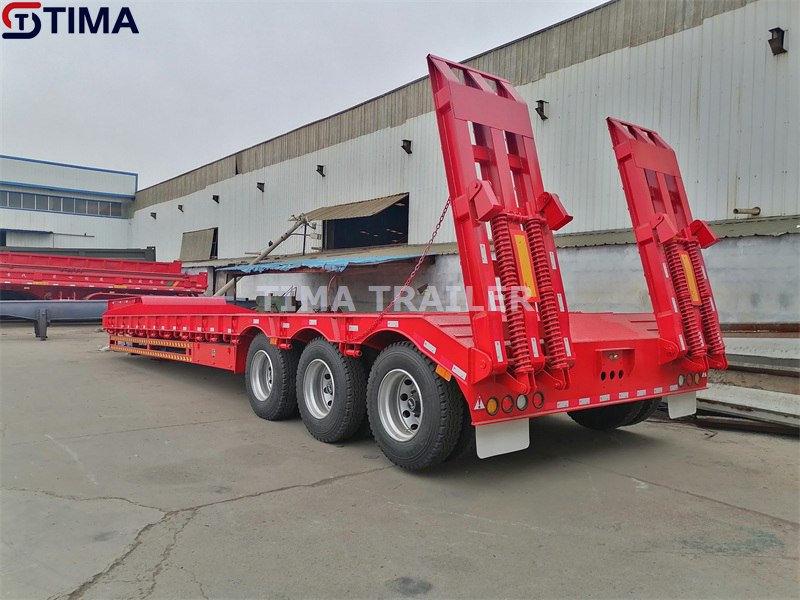

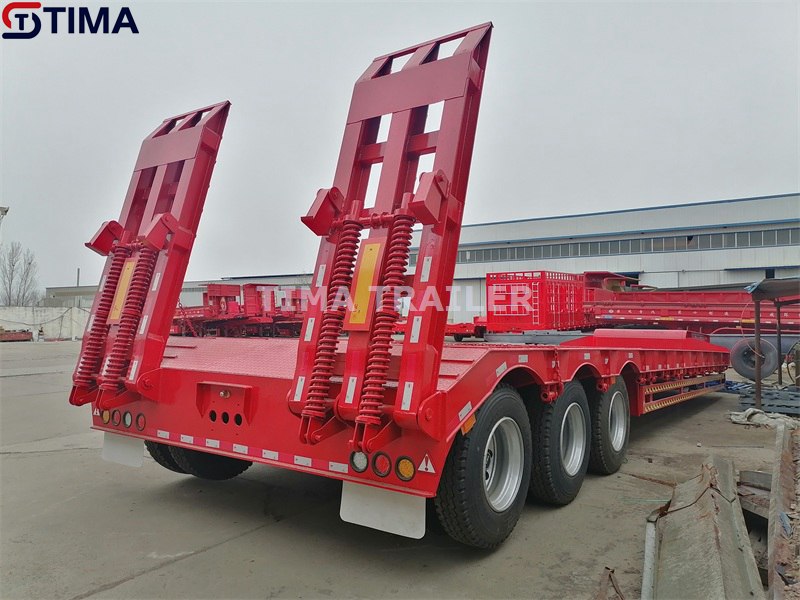

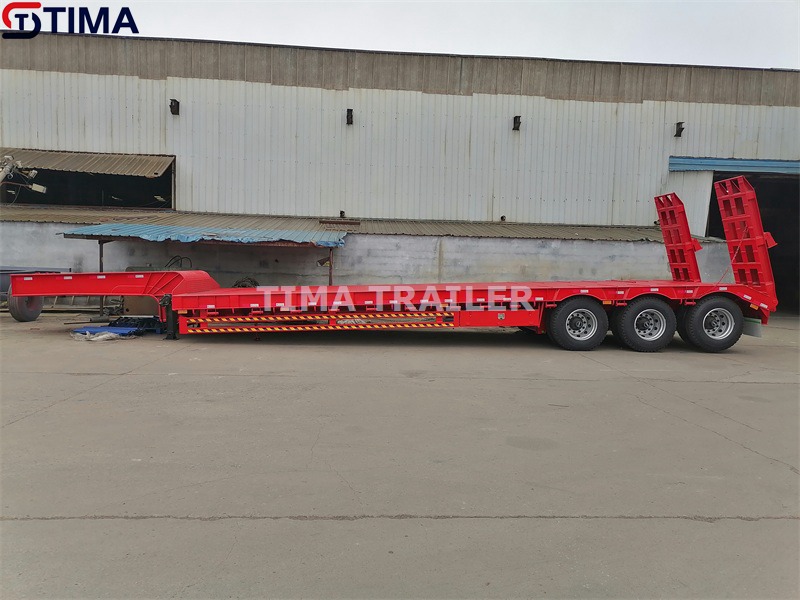

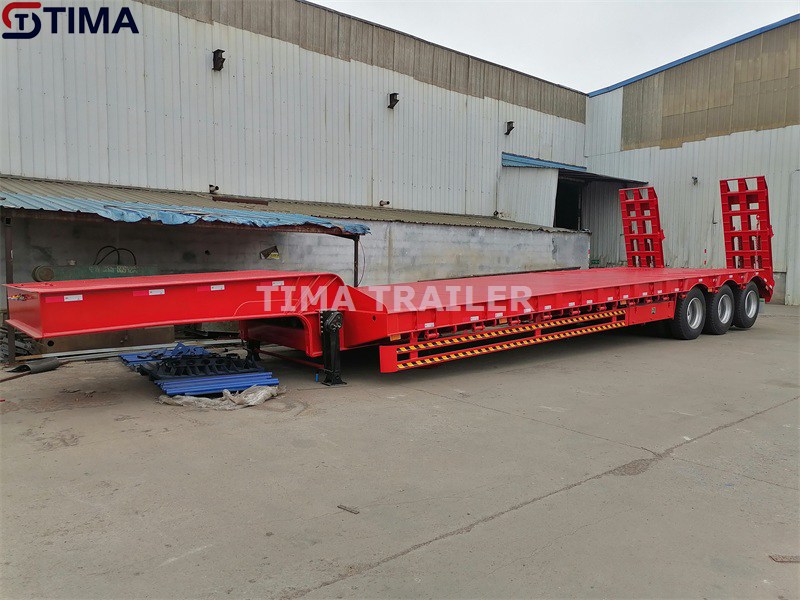

3 Axle 70 Tons Lowbed Trailer Picture

3 axle 70 tons lowbed trailer main beam adopt the Q355 manganese plate, side beam and ladder material is T700 high strength steel. The side beam and ladder is main bearing points, using the stronger T700 steel is the right choice. The painting of lowbed trailer is electrostatic powder coating process, Improved corrosion and wear resistance.

3 Axle 70 Tons Lowbed Trailer Configuration

Overall Dimension: 13000x3000x3200mm(LxWxH)

Loading Platform: 9700x3000x1230mm(LxWxH)

Loading Capacity: 70 tons

Axle: FUWA, ZY or BPW brand. 3 axle, 3x16000kg.

Tire: TRIANGLE brand. 315/80R22.5, tubeless model.

Suspension: Mechanical suspension

Leaf Spring: TAIYUE brand. 90x16mmx10pcs

Tractor Pin: JOST brand. 2.0 or 3.5inch

Support Leg: JOST and YAHUA brand. 28 tons

Main Beam: Height: 500mm, Upper plate: 18mm, Middle plate: 12mm, Lower plate: 20mm.

Loading Platform Thickness: 4mm thick checkered plate

Ladder: Mechanical spring model, 850mm width, T700 high strength steel

Brake System: WABCO brand brake valve and big brake chamber

Painting: Electrostatic powder spraying and baking

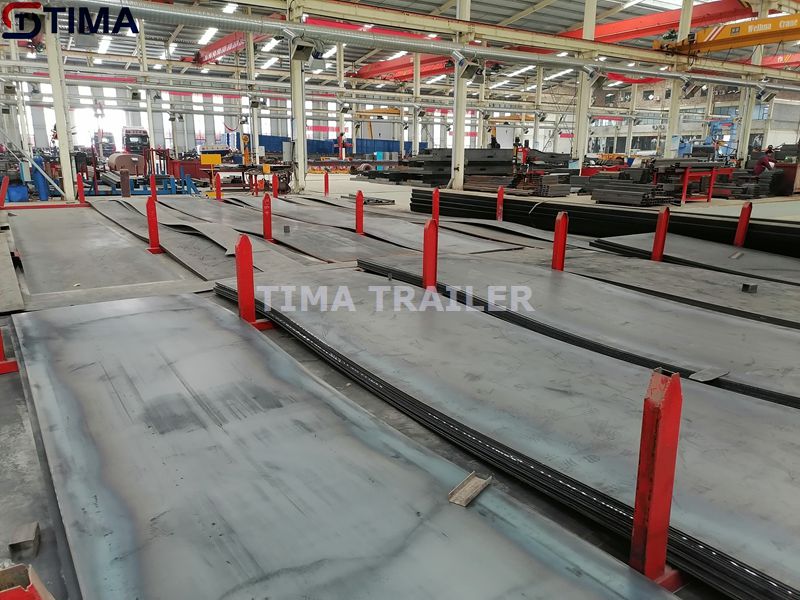

3 Axle 70 Tons Lowbed Trailer Material

The 70 tons lowbed trailer 70% material is steel. So high quality steel is very important ! The Q355 manganese steel, widely used in semi-trailers and other vehicles, with a yield strength of 355 MPa. featuring high hardness, friction resistance, oxidation resistance, great corrosion resistance, good workmanship, plasticity and machinability, etc.
