3 Axle Low Bed Trailer

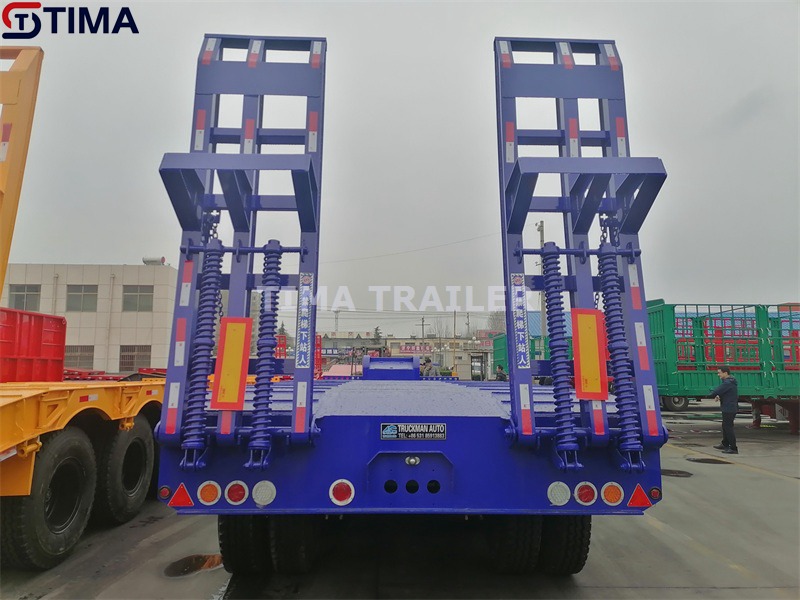

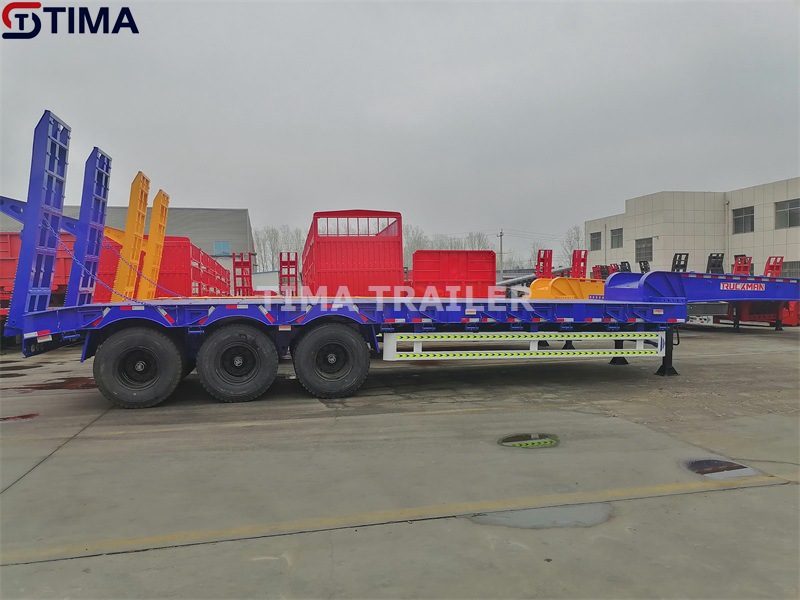

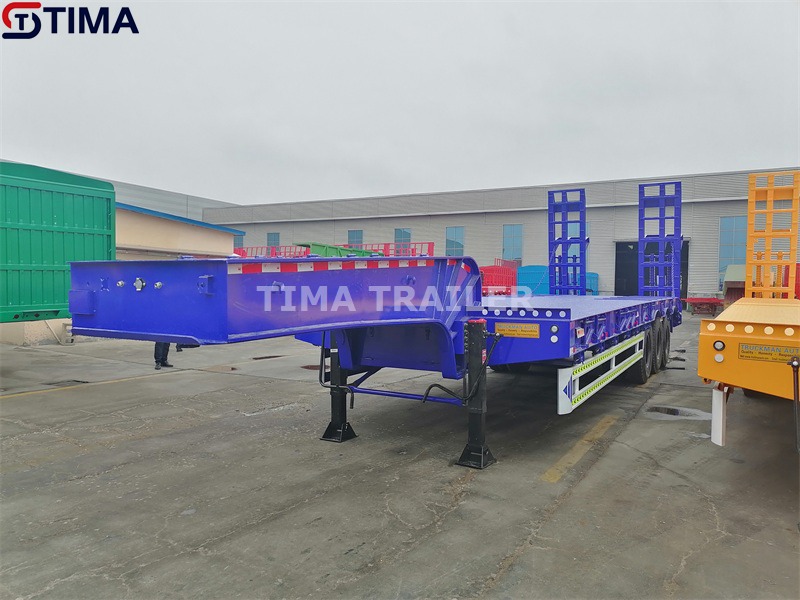

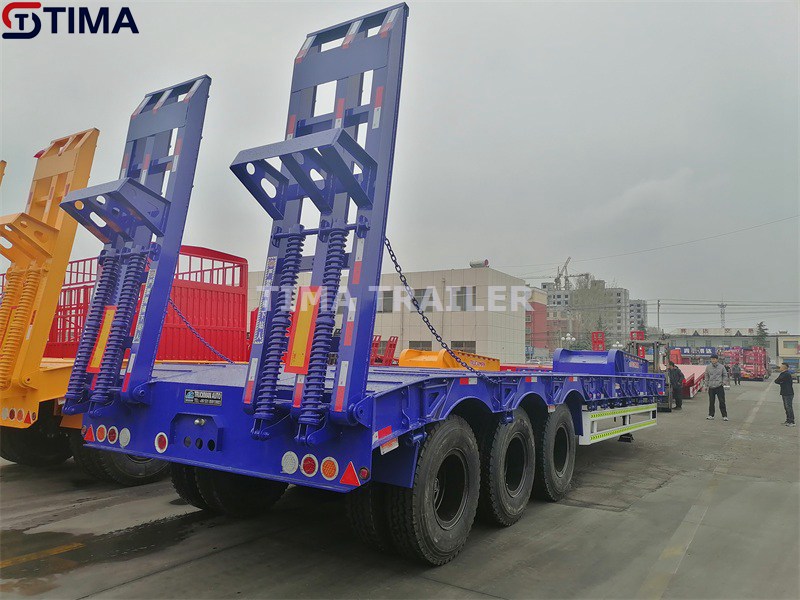

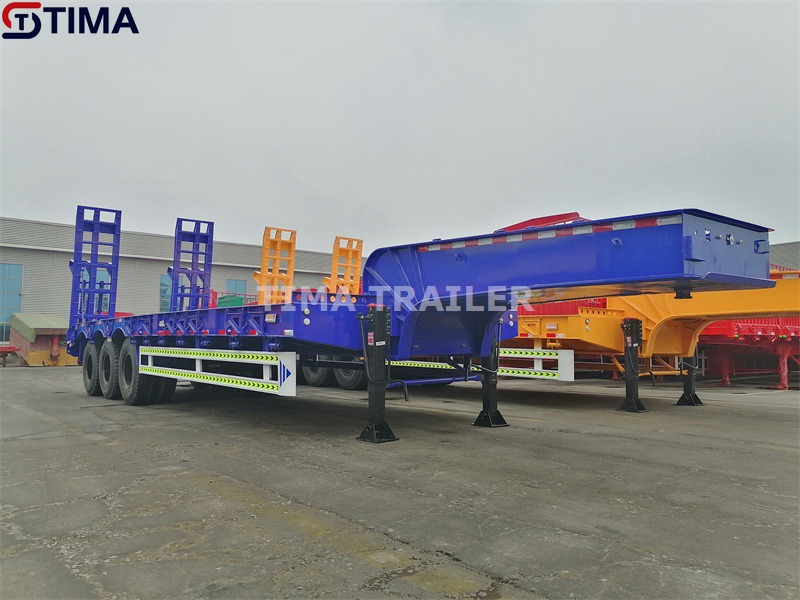

3 Axle Low Bed Trailer Picture

3 axle low bed trailer mainly used for construction machinery transport, such as carry excavator, wheel loader, road roller and asphalt pavers etc. Also can transport the substation and other large equipment. The 3 axle low bed trailer loading capacity from 40 tons to 80 tons, heavy duty loading.

3 axle low bed trailer

3 axle low bed trailer

3 Axle Low Bed Trailer Configuration

Overall Dimension: 13000x3000x3400mm(LxWxH)

Loading Platform: 9700x3000x1300mm(LxWxH)

Loading Capacity: 40-80 tons

Axle: FUWA, ZY or BPW brand. 3 axle, 3x16000kg.

Tire: TRIANGLE brand. 315/80R22.5, tubeless model.

Suspension: Mechanical suspension

Leaf Spring: TAIYUE brand. 90x16mmx10pcs

Tractor Pin: JOST brand. 2.0 or 3.5inch

Support Leg: JOST brand. 28 tons

Main Beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm,

Material: Q355 manganese steel.

Loading Platform Thickness: 4mm thick checkered plate

Ladder: Mechanical spring model, 850mm width, T700 high strength steel

Brake System: WABCO brand brake valve and big brake chamber

Painting: Electrostatic powder spraying and baking

3 Axle Low Bed Trailer Advantages

-. The low bed trailer adopt advanced production process, like automatic submerged tech, quality is guaranteed.

-. The low bed trailer has superb abrasion resistance, e.g. by using baked enamel to improve the paint's resistance to abrasion.

-. Main components of low bed trailer use the durable quality spare parts, with long service life and low maintenance cost etc advantages.
