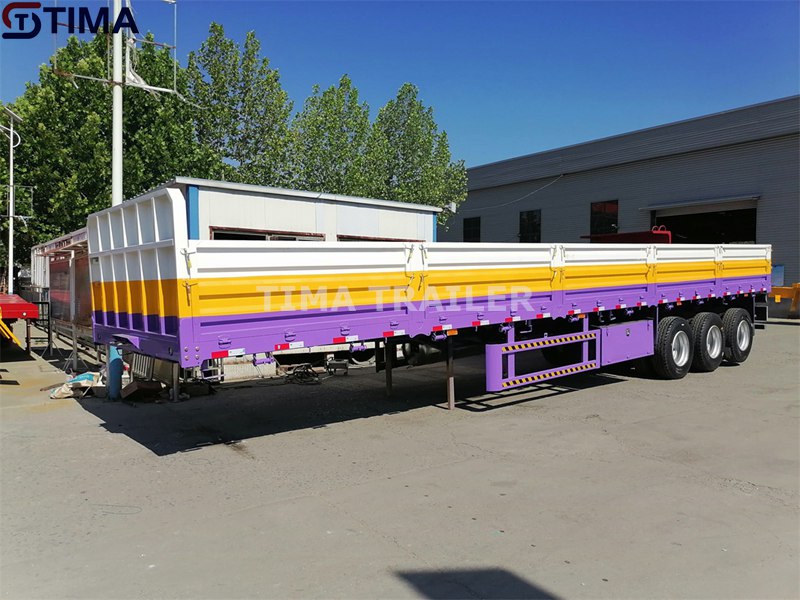

50 Tons Drop Side Trailer

50 Tons Drop Side Trailer Details

A side tip trailer is a flatbed trailer that has hinged side walls that can be opened or lowered to make loading and unloading cargo easier. These trailers are often used to transport heavy equipment, machinery, and other large items that might be difficult to load onto a standard flatbed trailer.

                                                              50 Tons Drop Side Trailer For Sale In Zambia

50 Tons Drop Side Trailer Specification

Overall Dimension: 12340x2560x2830mm(LxWxH)

Axle: BPW brand. 3 axle, 3x13000kg

Tire: TRIANGLE brand. 315/80R22.5, 12 pcs.

Support Leg: JOST brand, 28 tons

Tractor Pin: JOST brand, 3.5 inch

Suspension: mechanical suspension

Leaf Spring: TAIYUE brand. 90x13mmx10pcs

Fence Height: 600mm

Loading Capacity: 50,000kg

The 50 tons drop side trailer specification only for your reference, we also can manufacture drop side trailer basic on your request.

50 Tons Drop Side Trailer Side Beam Details

Semi-trailer side beams, also known as cross beams, are structural components of the trailer frame that extend perpendicular to the longitudinal direction of the trailer. These beams, or beams, connect the trailer's two main structural members, called side or main beams, and provide support and stability for the trailer floor.
