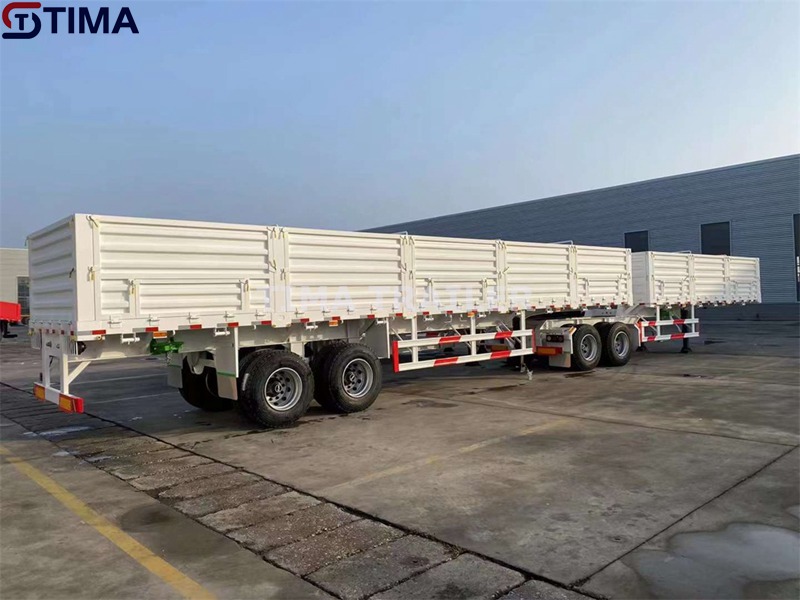

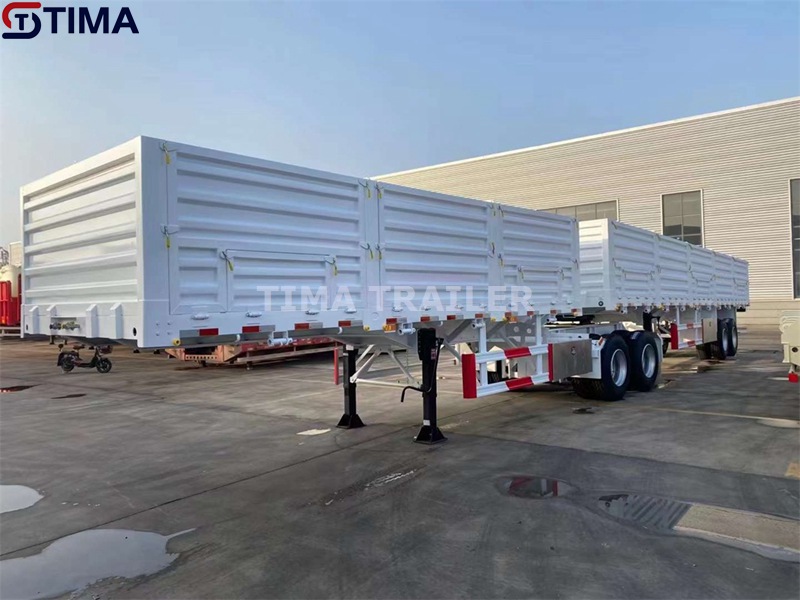

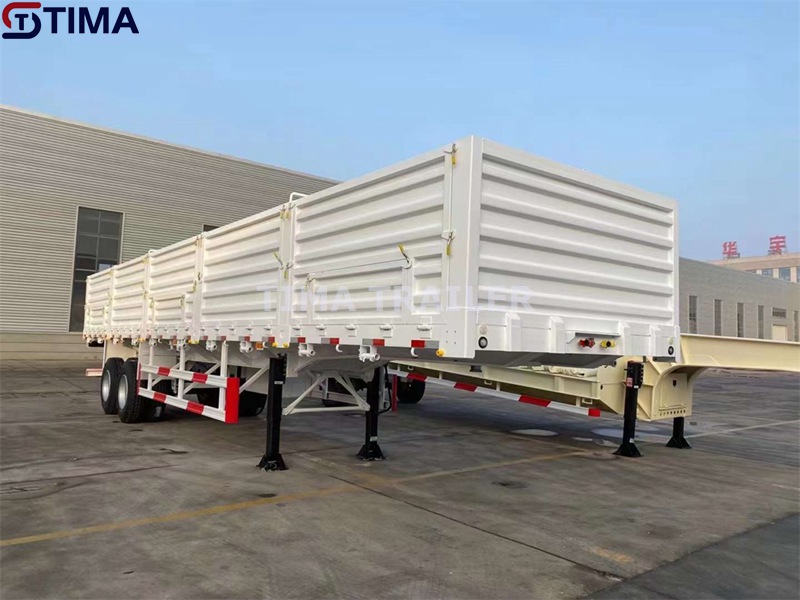

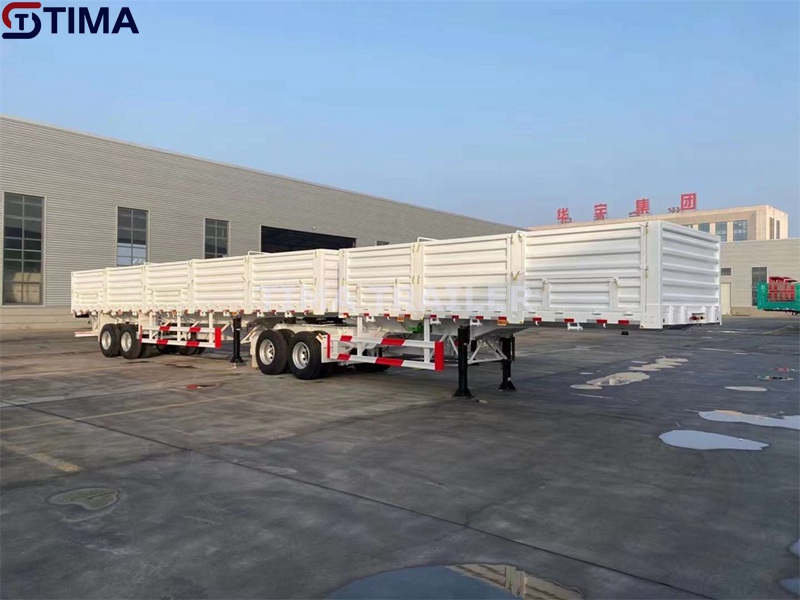

4 Axle 70 Tons Superlink Cargo Trailer

4 Axle 70 Tons Superlink Cargo Trailer Details

The 4 axle 70 tons superlink cargo trailer can used for haulage all kind of container and bulk cargoes. Per axle loading capacity reach to 16,000kg brand can optional BPW, ZY and FUWA. The tire of trailer is 315/80R22.5 tubeless long distance transport model, with long using time and high loading capacity.

                                        4 Axle 70 Tons Superlink Cargo Trailer For Sale In Mozambique

4 Axle 70 Tons Superlink Cargo Trailer Specification

Overall Dimension: 17450x2580x3550mm(LxWxH)

Axle: FUWA/ZY/BPW brand. 4 axle, 4x13000kg

Tire: TRIANGLE brand. 315/80R22.5, 16+1 pcs.

Support Leg: JOST brand, 28 tons

Tractor Pin: JOST brand, 3.5 inch

Suspension: Air or mechanical suspension

Leaf Spring: TAIYUE brand. 90x16mmx10pcs

Fence Height: 800mm

Loading Capacity: 70,000kg

The 4 axle 70 tons superlink cargo trailer specification only for your reference, we also can manufacture superlink trailer basic on your request.

4 Axle 70 Tons Superlink Cargo Trailer Saddle

The saddle model have 2 inch and 3.5 inch. The saddle is the receptor of the force from front and rear, left and right, up and down aspects when the semi-trailer is transported, driving forward, the saddle provides the transmission of the front traction force, which makes the trailer move forward. When braking, in order to ensure that the main vehicle does not throw its head, the trailer brakes before the main vehicle, at this time, the saddle bears the moment, dragging the main vehicle no longer forward.
