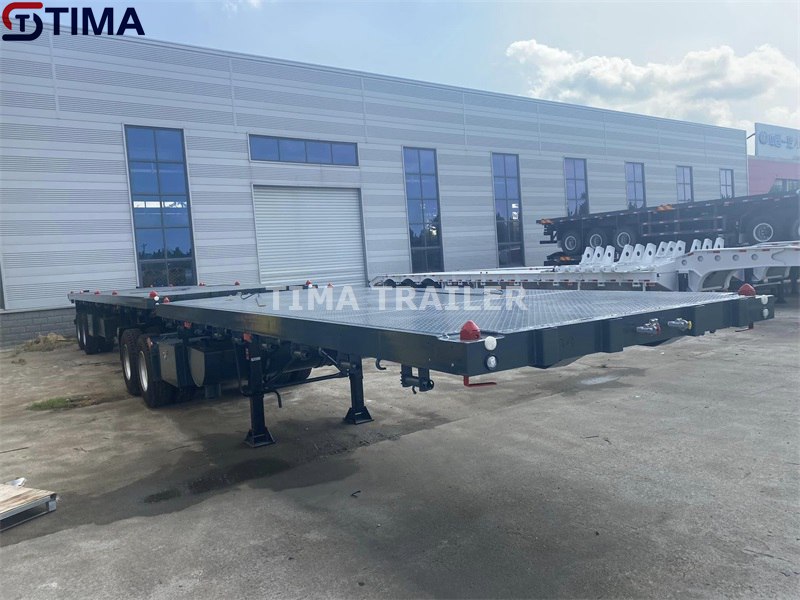

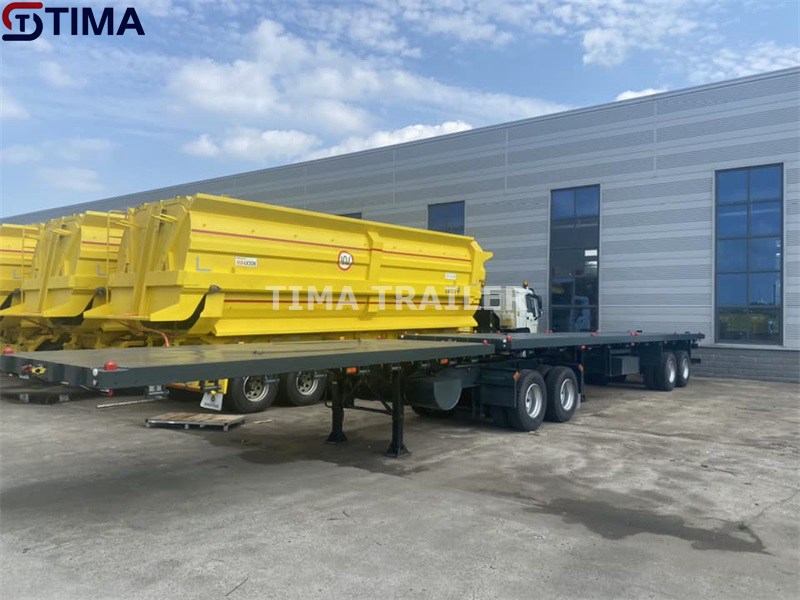

Super Link Container Trailer

Super Link Container Trailer Axle Details

The trailer total have 4 axles, per axle loading capacity is 13000kg. America and Germany type axle available. The brand of can optional the FUWA, ZY, BPW etc brand. Application the 16 tons brake pad, with strong load-bearing capacity, good braking effect, good heat dissipation and easy maintenance. With 1 year or 100,000km warranty.

                                             Super link Container Trailer For Sale In Mozambique

Super Link Container Trailer Specification

Overall Dimension: 17900x2500x1540mm(LxWxH)

Axle: FUWA brand. 4 axle, 4x13000kg

Tire: TRIANGLE brand. 12R22.5, 16 pcs.

Support Leg: JOST brand, 28 tons

Tractor Pin: JOST brand, 3.5 inch

Brake Valve: WABCO brand

Suspension: mechanical suspension

Leaf Spring: 90x16mmx10pcs

Container Lock: 12 pcs

The super link container trailer for sale specification only for your reference, we also can manufacture super link trailer basic on your request.

Super Link Container Trailer Suspension Detail

The super link container trailer suspension including two model, air suspension and mechanical suspension. The air suspension suitable for light duty and some road with a restricted weight, with low self weight and easy operation etc advantages. And the mechanical suspension suitable for heavy duty cargoes and bad road transportation, with low purchase and maintenance cost etc advantages.

Super Link Container Trailer Shipment Detail

The super link container trailer can stack as 1 pcs cargoes to save the freight cost and shipment can via 40FT container and bulk cargo vessel. We will send all cost of these two model shipment way let you choose which one is suitable. No matter of the shipping method, we will protect the container trailer from rust and breakage.
