U Shape 4 Axles Tipper Trailer

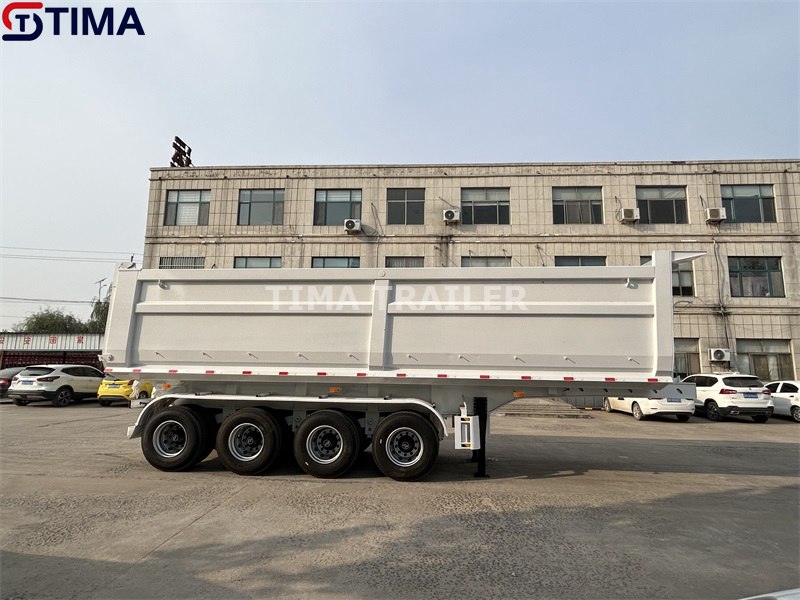

U Shape 4 Axles Tipper Trailer Bucket Detail

The 4 axles bucket is U shape, there are rectangle model bucket available. U shape bucket have many advantages, such as: The corners of the U bucket do not have dead corners, so it is not easy to stick to the box when unloading, and it is cleaner to unload the cargo.The U bucket reduces the dead weight through the optimisation of its structure, and effectively improves the utilisation coefficient of the loaded mass.

                                               U Shape 4 Axles Tipper Trailer For Sale In Tema

U Shape 4 Axles Tipper Trailer Specification

Overall Dimension: 11500x2580x3540mm(LxWxH)

Axle: FUWA brand. 4 axle, 4x16000kg, ZY brand

Tire: TRIANGLE brand. 315/80R22.5, 16 pcs.

Support Leg: JOST brand, 28 tons

Tractor Pin: JOST brand, 3.5 inch

Brake Valve: WABCO brand

Suspension: mechanical suspension

Leaf Spring: 90x16mmx10pcs

Bucket: 40 cubic meters

The U shape 4 axles tipper trailer for sale specification only for your reference, we also can manufacture 4 axles tipper trailer basic on your request.

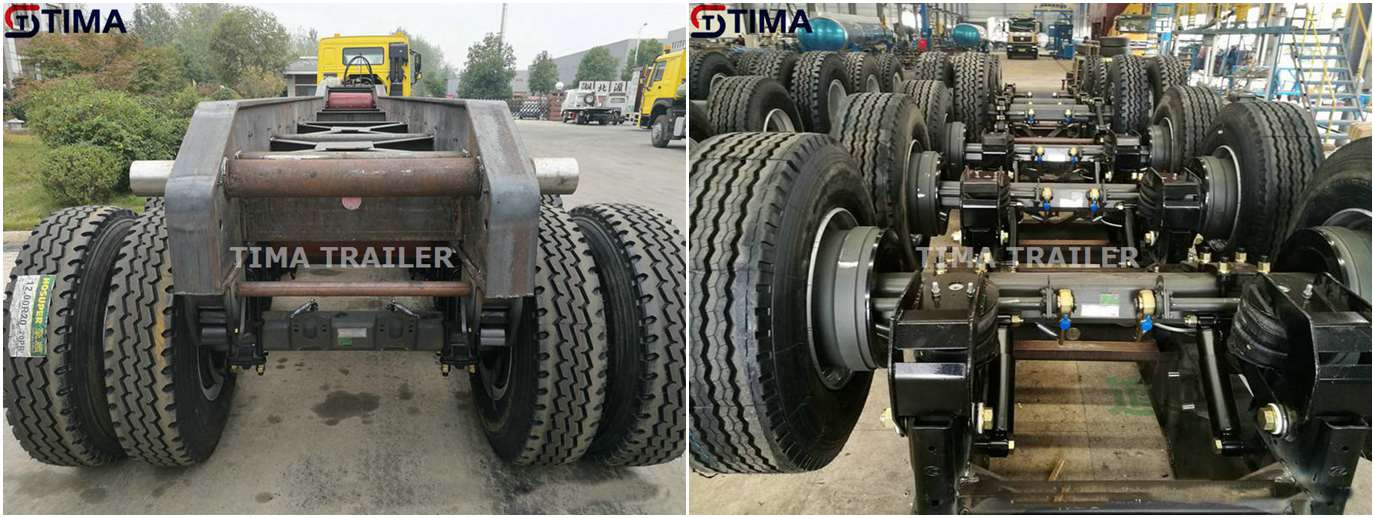

U Shape 4 Axles Tipper Trailer Chassis Detail

The 4 axles tipper trailer chassis adopt the ‘X’ design type. Good torsional resistance, will not cause the main beam to twist and deform. With the application of T700 high strength steel, the load carrying capacity is higher and the service life is three times longer than that of ordinary steel. Combination of finite element analysis, component testing, all-weather road testing and other multiple validations.

U Shape 4 Axles Tipper Trailer Shipment Picture

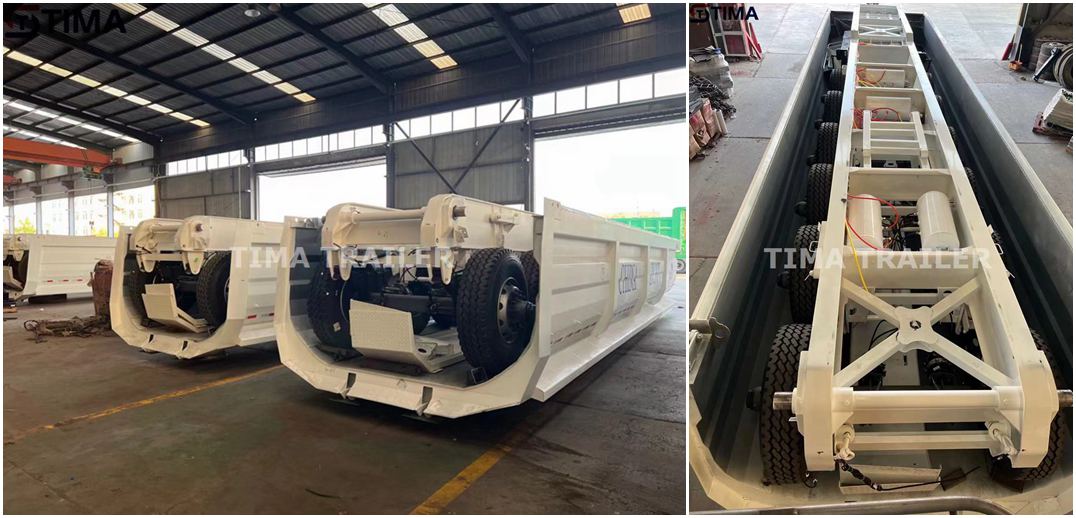

The container is good way for the 4 axles tipper trailer shipment. The freight cost is lower than other type vessel, it can protect the tipper trailer well no scratches and rust problems. And reduced shipping costs by splitting the tipper trailer into two parts, the bucket and the chassis, and then putting the entire chassis directly into the bucket. See the following picture:
